K100 (K589) | Fuel Preparation

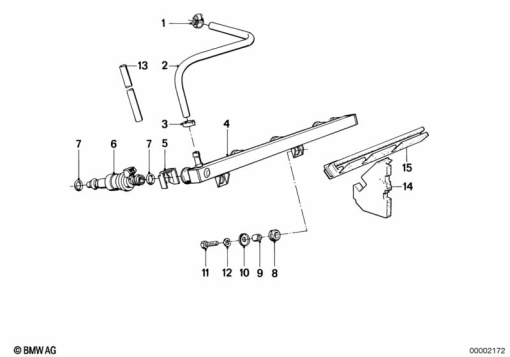

FUEL INJECTION SYSTEM/INJECTION VALVE
Diagram #13_0514 | 18 parts | 2 available in shop
100%
Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 12 1 461 500 | HOSE CLAMP - D=12MM - 13,5MM | 1 | |
| 2 | 16 12 1 180 409 | FUEL HOSE - 8X13MM (meter) | 1 | |
| 3 | 13 31 1 460 928 | HOSE CLAMP - D=13 | 1 | |
| 3 | 17 12 1 461 500 | HOSE CLAMP - D=12MM - 13,5MM | 1 | |
| 4 | 13 53 1 460 409 | INJECTION RAIL | 1 | |
| 5 | 13 53 1 274 729 | CLAMP | 1 | |
| 6 | 13 64 1 460 450 | INJECTION VALVE | 1 | |
| 7 | 13 64 1 730 767 | O-RING - 7,52X3,53 | 1 | |
| 8 | 13 53 1 460 417 | RUBBER GROMMET - 15X10X9 | 1 | |
| 9 | 13 53 1 460 414 | SPACER SLEEVE | 1 | |
| 10 | 13 53 1 460 413 | WASHER | 1 | |
| 11 | 07 11 9 904 505 | HEX BOLT - M6X22-8.8-ZNS3 | 1 | |
| 12 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 12 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 12 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 | 1 | |
| 12 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 12 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 13 | 13 53 7 666 005 | PROTECTIVE HOSE - 330MM | 1 |
