K100 (K589) | Frame, Fairing, Cases

RAISED HANDLE

Diagram #46_1267 | 4 parts | 2 available in shop

100%

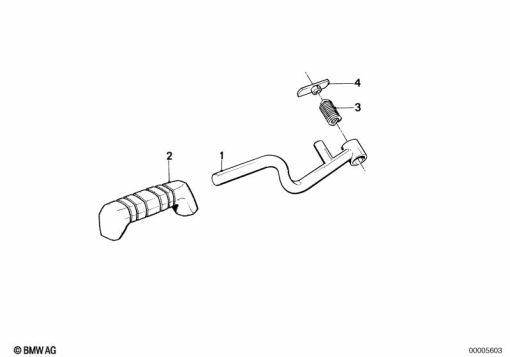

K100 (K589) RAISED HANDLE exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 71 1 451 964
RAISED HANDLE1
2
46 71 1 451 968
HANDLE1
3
46 71 1 451 969
SPRING1
4
46 71 1 451 970
SPRING RETAINER1
