K100 (K589) | Frame, Fairing, Cases

INTEGRAL CASE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #46_1266 | 21 parts

100%

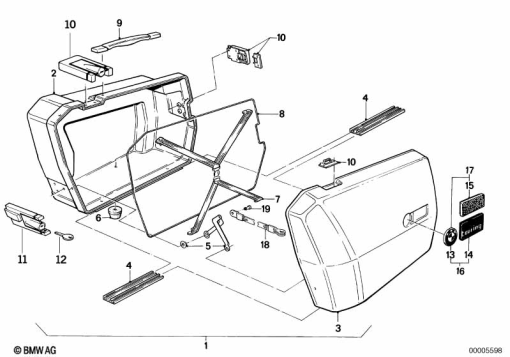

K100 (K589) INTEGRAL CASE exploded view parts diagram

Parts List (21)

#	Part Number	Description	Qty
2	46 54 2 300 033	HOUSING BOTTOM LEFT	-
	46 54 2 300 034	HOUSING BOTTOM RIGHTAlternative for position 2	-
3	46 54 2 300 035	COVER LEFT	-
	46 54 2 300 036	COVER RIGHTAlternative for position 3	-
4	46 54 2 300 039	HINGE	-
5	46 54 2 300 055	HINGE LEFT	-
	46 54 2 300 056	HINGE RIGHTAlternative for position 5	-
6	46 54 2 300 044	SET: PAD	-
7	46 54 2 300 043	RUBBER BAND	-
8	46 54 2 300 042	GASKET - 5X1560MM	-
9	46 54 2 300 013	HANDLE	-
10	46 54 2 300 088	LOCK (to 02/88)	-
	46 54 2 300 089	CATCH (CODE) - (CODE) (to 02/88)Alternative for position 10	-
11	46 54 2 300 041	LOCK (to 02/88)	-
	46 54 2 300 048	CATCH (CODE) (to 02/88)Alternative for position 11	-
12	46 54 2 300 006	STANDARD KEY (CODE) (to 02/88)	-
13	46 54 2 300 045	BADGE	-
15	63 14 8 529 372	REAR REFLECTOR RED	-
17	46 54 9 056 969	SET: INSTALLING SIDE MARKING LIGHT - RED	-
18	46 54 2 300 441	HOLDING STRAP - L=180MM	-
19	51 16 1 828 956	0.01	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
