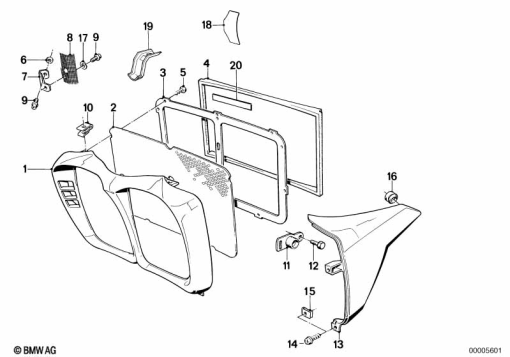

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 0 026 149 | RADIATOR TRIM PANEL PRIME COATED CENTER - VERSCHIED.FARBE | - | |
| 2 | 46 63 1 450 941 | GRID | - | |
| 3 | 46 63 1 450 942 | FRAME | - | |
| 4 | 46 63 2 312 922 | SEALING STRIP - 300MM | - | |
| 5 | 07 11 9 907 913 | FILLISTER HEAD SELF-TAPPING SCREW - ST3,5X9,5-Z1 | - | |
| 6 | 13 73 0 642 119 | WASHER | - | |
| 7 | 46 63 1 450 634 | SUPPORT | - | |
| 8 | 46 63 1 450 677 | GRID | - | |
| 9 | 12 31 2 322 411 | FILLISTER-HEAD SCREW - M5X8 | - | |
| 10 | 46 63 1 450 689 | CLAMP | - | |
| 11 | 46 63 1 450 688 | SHACKLE | - | |
| 12 | 07 11 9 904 442 | HEX BOLT - M5X10 | - | |
07 11 9 905 138 | HEX BOLT - M5X 12MMAlternative for position 12 | - | ||
| 13 | 46 63 1 453 155 | RADIATOR TRIM PANEL PRIME COATED LEFT | - | |
46 63 1 453 156 | RADIATOR TRIM PANEL PRIME COATED RIGHTAlternative for position 13 | - | ||
| 14 | 07 11 9 904 176 | SHEET METAL SCREW - ST4,2X19-U2-C-H | - | |
| 15 | 07 12 9 901 645 | BODY NUT - ST4,2-2ZNS | - | |
| 16 | 46 63 1 453 144 | RUBBER GROMMET | - | |
46 63 1 453 145 | 0.02Alternative for position 16 | - | ||
| 17 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 18 | 46 63 1 453 362 | FOIL | - | |
| 19 | 46 63 1 453 527 | HOLDER | - | |
| 20 | 46 63 1 453 980 | SEALING STRIP - 365X8X2MM | - |
