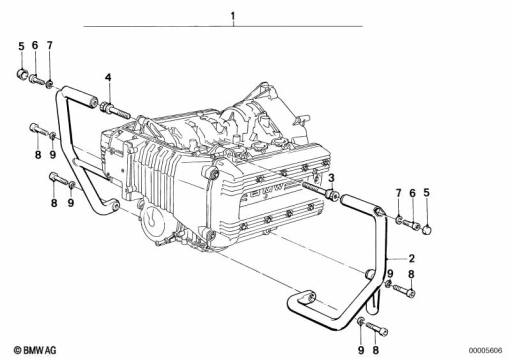

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 303 061 | SET: ENGINE PROTECTION BAR SET - CHROME | - | |
| 3 | 46 71 1 451 175 | SCREW - M10X55 | - | |
| 4 | 46 71 1 451 176 | SCREW - M10X45 | - | |
| 5 | 46 71 2 300 161 | 0.01 | - | |
| 6 | 07 11 9 919 682 | FILLISTER-HEAD SCREW - M10X25-8.8 ZN (to 12/88) | - | |
07 11 9 904 253 | FILLISTER-HEAD SCREW - M10X25-8.8-ZNS3Alternative for position 6 | - | ||
| 7 | 07 11 9 933 110.1 | 10MM WAVE WASHER STAINLESS | - | |
07 11 9 933 110L | SPLIT LOCKWASHERAlternative for position 7 | - | ||
07 11 9 904 463 | WAVE WASHER - B10-ZNS3Alternative for position 7 | - | ||
| 8 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | - | |
| 9 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
