K100 (K589) | Electrical System
HORN, PULSE GENERATOR SPEEDOMETER

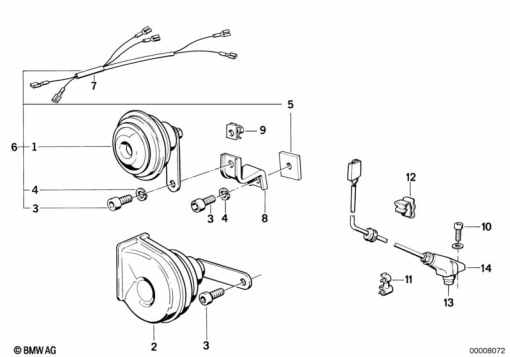

Diagram #61_2723 | 17 parts | 1 available in shop
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 33 1 459 152 | HORN - 425HZ | 1 | |
| 1 | 61 33 1 243 710 | HORN - 420HZ | 1 | |
| 3 | 07 12 9 905 214 | ISA SCREW - M8X16-8.8-ZNS3 | 1 | |
| 4 | 07 11 9 933 096 | SPRING WASHER - B8 | 1 | |
| 5 | 61 33 1 459 175 | LOCK PLATE | 1 | |
| 6 | 61 33 1 459 635 | SET: RETROFIT KIT | 1 | |
| 7 | 61 12 1 459 632 | WIRING DUAL HORN | 1 | |
| 8 | 61 33 1 459 628 | BRACKET HORN | 1 | |
| 9 | 61 33 2 346 555 | C-CLIP NUT - M8-ZNS3 | 1 | |
| 11 | 11 78 1 279 705 | HOLDER | 1 | |
| 12 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | 1 | |
| 13 | 61 31 1 459 030 | GASKET RING | 1 | |
| 14 | 61 31 1 459 964 | PULSE GENERATOR, SPEEDOMETER | 1 | |
| 14 | 61 31 2 305 839 | PULSE GENERATOR, SPEEDOMETER | 1 | |
| 1 | 61 31 1 354 400 | RUBBER GROMMET | 1 | |
| 1 | 61 13 1 357 090 | CABLE SOCKET FEMALE - B=3,7MM/L=14MM | 1 | |
| 1 | 61 13 1 357 903 | PLUG HOUSING - 2-POLIG | 1 |
