K100 (K589) | Electrical System
ENGINE WIRING HARNESS

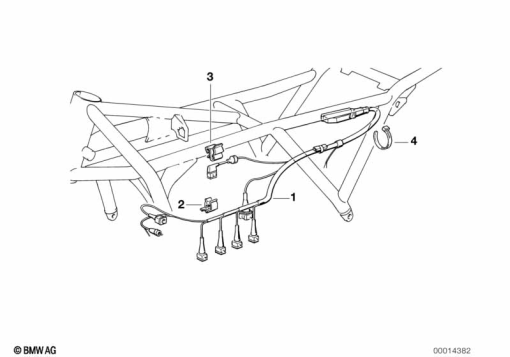

Diagram #61_2724 | 6 parts | 1 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 11 1 459 520 | ENGINE WIRING HARNESS (to 04/85) | 1 | |
| 1 | 61 11 1 459 591 | ENGINE WIRING HARNESS (from 04/85) | 1 | |
| 2 | 61 13 1 459 192 | CLAMP | 1 | |
| 3 | 07 14 7 547 239 | FIXING CLAMP - A=3,5 - 6,0MM | 1 | |
| 3 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | 1 | |
| 4 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 |
