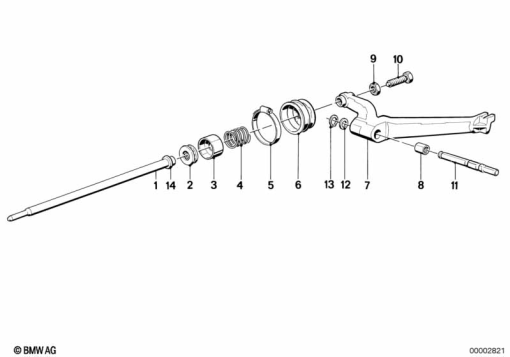

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 13 1 451 120 | 0.12 | - | |
| 2 | 07 11 9 984 020 | GROOVED BALL BEARING - 51100 (to 06/88) | - | |
| 3 | 23 13 1 464 167 | PISTON | - | |
| 4 | 23 13 1 241 849 | SPRING | - | |
| 5 | 23 13 1 241 872 | CLAMP - D=40 | - | |
| 6 | 23 13 1 338 731 | 0.02 | - | |
| 7 | 23 13 1 451 122 | CLUTCH LEVER | - | |
| 8 | 23 13 1 451 147 | NEEDLE SLEEVE - 12X8X10 | - | |
| 9 | 07 11 9 904 948 | HEX NUT - M8-05-ZNNIV SI | - | |
07 11 9 921 056 | New number for M6 lock nutAlternative for position 9 | - | ||
| 10 | 23 13 1 341 765 | ADJUSTING SCREW - M8X37 | - | |
| 11 | 23 13 1 451 124 | 0.06 | - | |
| 12 | 07 11 9 932 663 | SHIM - 8X14X1,2 | - | |
| 13 | 07 11 9 934 035 | LOCK RING - 8X0,8 | - | |
| 14 | 23 13 1 239 891 | BUSH (to 06/88) | - |
