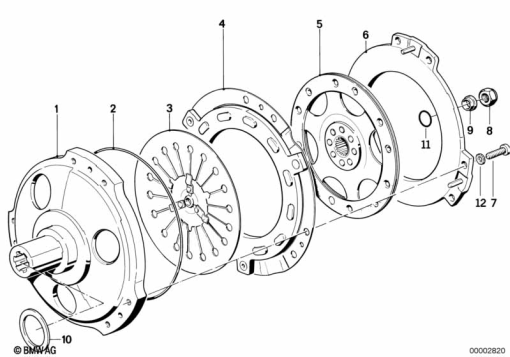

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 1 450 899 | CLUTCH HOUSING | - | |
| 2 | 21 21 1 451 274 | SPACER RING | - | |
| 3 | 21 21 1 451 269 | DIAPHRAGM SPRING | - | |
| 4 | 21 21 1 464 570 | PRESSURE PLATE | - | |
| 5 | 21 21 1 464 795 | CLUTCH PLATE | - | |
| 6 | 21 21 2 333 472 | HOUSING COVER | - | |
| 7 | 21 21 1 454 417 | FILLISTER-HEAD SCREW - M7X25-8.8 | - | |
| 8 | 11 21 1 460 673 | HEX NUT - M20X1,5 | - | |
| 9 | 11 21 1 460 696 | COMPRESSION RING | - | |
| 10 | 11 21 1 460 873 | STOP DISK - 1MM | - | |
11 21 1 461 813 | STOP DISK - 1,25MMAlternative for position 10 | - | ||
| 11 | 11 21 1 460 467 | O-RING - 19X4 | - | |
| 12 | 21 21 1 242 377 | WASHER - A7,4 | - |
