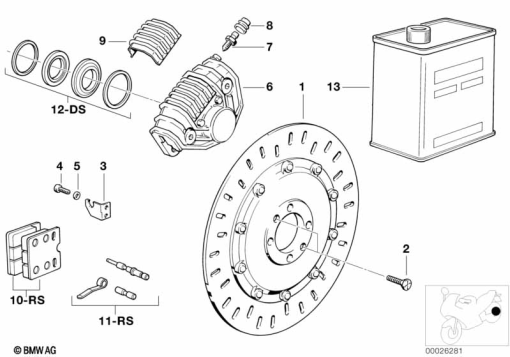

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 2 310 206 | REAR BRAKE DISK BLACK | - | |
| 2 | 34 21 2 330 021 | COUNTERSUNK HEAD SCREW - M8X20 TUFLOK | - | |
| 3 | 33 11 1 451 189 | BRACKET | - | |
| 4 | 07 12 9 905 534 | FILLISTER-HEAD SCREW - M10X25 | - | |
| 5 | 07 11 9 931 020 | WASHER - A10,5 | - | |
| 6 | 34 51 1 457 469 | BRAKE CALIPER - D=38MM (to 12/96) | - | |
| 7 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN | - | |
| 8 | 34 21 1 236 794 | DUST CAP | - | |
| 9 | 34 11 1 454 120 | COVERING CAP - BREMBO | - | |
| 10 | 34 11 1 454 724 | SET: BRAKE PADS KIT (to 12/96) | - | |
| 11 | 34 11 1 454 005 | SET: SET MOUNTING PARTS | - | |
| - | 34 21 7 657 025 | BRAKE PADS KIT | - | |
| 12 | 34 11 2 310 493 | SET: REPAIR SET BRAKE CALIPER | - | |
| 13 | 83 13 2 445 461 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 12/96) | - | |
83105A87362 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1LAlternative for position 13 | - | ||
83 13 2 467 961 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 12/96)Alternative for position 13 | - | ||
83105A87361 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250MLAlternative for position 13 | - |
