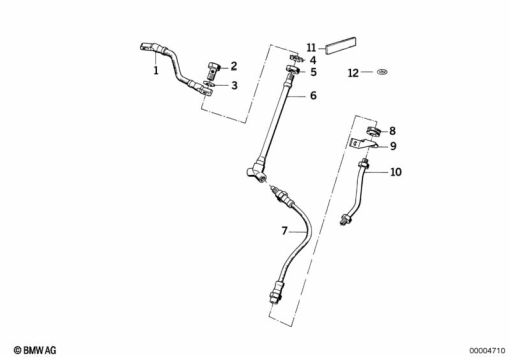

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 1 451 571 | BRAKE HOSE - L=249MM (to 09/91) | - | |
34 32 2 310 117 | BRAKE HOSE - L=217MMAlternative for position 1 | - | ||
| 2 | 34 32 1 242 205 | HOLLOW BOLT | - | |
| 3 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 5 | 34 32 1 451 766 | HEX NUT - M16X1,5 | - | |
| 6 | 34 32 1 457 298 | DISTRIBUTION PIECE | - | |
| 7 | 34 32 1 457 852 | BRAKE HOSE - L=360MM | - | |
| 8 | 34 32 1 236 462 | GROMMET | - | |
| 9 | 34 32 1 450 761 | HOSE BRACKET, LEFT | - | |
34 32 1 450 762 | HOSE BRACKET, RIGHTAlternative for position 9 | - | ||
| 10 | 34 32 1 450 757 | BRAKE PIPE LEFT | - | |
34 32 1 450 758 | BRAKE PIPE RIGHTAlternative for position 10 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
