SPOKE WHEEL, REAR

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #36_0447 | 31 parts

100%

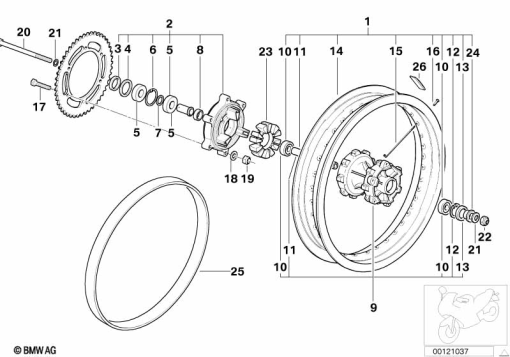

G650GS 10-15 (R131) SPOKE WHEEL, REAR exploded view parts diagram

Parts List (31)

#	Part Number	Description	Qty
1	36 31 8 563 865	SPOKE WHEEL, REAR - 3,50X17	-
2	27 71 7 650 055	SUPPORT SPROCKET	-
3	27 71 2 345 813	SPACER SLEEVE, EXTERIOR	-
4	36 31 8 561 714	SHAFT SEAL - AS30X40X7	-
5	33 81 8 543 930	GROOVED BALL BEARING - 6204-2RSH	-
6	07 11 9 906 808	LOCK RING - 47X1,75	-
7	27 71 7 655 483	STOPPER	-
8	27 71 2 345 812	SPACER SLEEVE, INTERIOR	-
9	36 31 7 650 054	WHEEL HUB,REAR, COMPL., WITH BEARINGS	-
10	31 42 2 314 724	GROOVED BALL BEARING - 17X40X12	-
11	36 31 2 345 809	SPACER SLEEVE, INTERIOR	-
12	07 11 9 906 782	LOCK RING - 40X1,75-ZNS3	-
13	36 31 8 561 714	SHAFT SEAL - AS30X40X7	-
14	36 31 8 561 753	WHEEL RIM REAR - 3.50X17	-
15	36 31 2 345 807	SPOKE REART	-
16	36 31 2 345 808	NIPPLE	-
17	07 11 9 905 549	HEX BOLT - M8X40-ZNNIV SI	-
18	07 11 9 907 030	WASHER - 8,4X16X1,6-ZNNV	-
19	07 12 9 906 196	SELF-LOCKING HEX NUT - M8-8-ZNNI SI	-
20	36 31 7 650 587	AXLE SHAFT REAR	-
21	36 31 7 650 590	WASHER - 17,5X34X4-ZNS3	-
22	07 12 9 906 784	HEX NUT - M16X1,5	-
23	27 71 2 345 789	ABSORBER	-
24	36 31 2 345 814	SPACER SLEEVE, EXTERIOR	-
25	61 13 8 351 989	FABRIC-TAPE - L=50M, B=30MM (meter)	-
26	36 31 7 720 635	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G	-
	36 31 7 720 636	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 26	-
	36 31 7 720 637	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 26	-
	36 31 7 720 638	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 26	-
	36 31 7 720 639	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 26	-
	36 31 7 720 640	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 26	-
