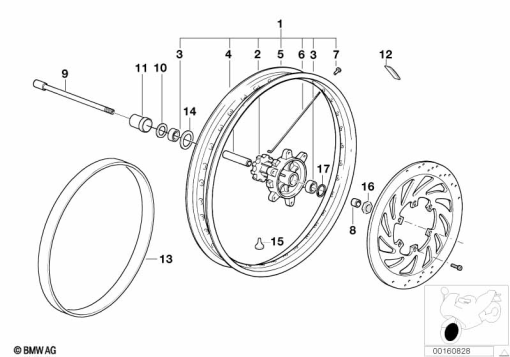

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 563 864 | SPOKE WHEEL FRONT - 2,50X19 | - | |
| 2 | 36 31 7 650 053 | WHEEL HUB, FRONT, CPL. WITH BEARINGS | - | |
| 3 | 31 42 2 314 724 | GROOVED BALL BEARING - 17X40X12 | - | |
| 4 | 36 31 2 345 821 | SPACER SHIMS, INNER | - | |
| 5 | 36 31 7 651 150 | WHEEL RIM FRONT - 2,50X19 | - | |
| 6 | 36 31 2 345 819 | SPOKE FRONT LEFT - L=226,5MM | - | |
36 31 2 345 820 | SPOKE FRONT RIGHT - L=224MMAlternative for position 6 | - | ||
| 7 | 36 31 2 345 808 | NIPPLE | - | |
| 8 | 36 31 2 345 823 | SPACER BUSH | - | |
| 9 | 36 31 7 705 569 | FLOATING AXLE, FRONT | - | |
| 10 | 36 31 8 561 713 | SHAFT SEAL - AS25X40X7 | - | |
| 11 | 36 31 7 705 571 | SPACER BUSHING, EXTERIOR - ZNS3 | - | |
| 12 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 12 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 12 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 12 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 12 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 12 | - | ||
| 13 | 61 13 8 351 989 | FABRIC-TAPE - L=50M, B=30MM (meter) | - |
