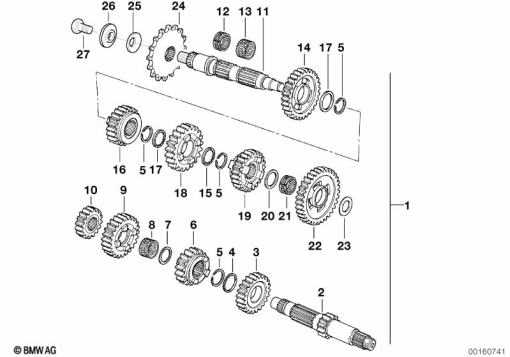

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 23 00 7 700 267 | COUNTERSHAFT - 12 | - | |
| 3 | 23 00 7 700 147 | GEAR WHEEL 4TH GEAR - 22 | - | |
| 4 | 23 00 7 700 155 | STOP DISK - 25,6X28,5X1,5 | - | |
| 6 | 23 00 7 700 151 | SHIFT GEAR FOR 3RD. GEAR - 16 | - | |
| 7 | 23 00 7 700 157 | STOP DISK - 21,2X27,5X1 | - | |
| 8 | 23 00 7 700 158 | NEEDLE CAGE - 21X25X13 | - | |
| 9 | 23 00 7 700 148 | GEAR WHEEL 5TH GEAR - 24 | - | |
| 10 | 23 00 7 700 145 | GEAR WHEEL, 2ND GEAR - 16 | - | |
| 11 | 23 00 7 700 269 | MAIN SHAFT | - | |
| 12 | 23 00 7 700 163 | NEEDLE CAGE - 22X26X10 | - | |
| 13 | 23 00 7 700 162 | NEEDLE CAGE - 22X26X13 | - | |
| 14 | 23 00 7 700 150 | GEAR WHEEL, 2ND GEAR - 28 | - | |
| 15 | 23 00 7 700 329 | RING | - | |
| 16 | 23 00 7 700 152 | SHIFT GEAR FOR 5TH. GEAR - 21 | - | |
| 17 | 23 00 7 700 179 | INTERM.RING | - | |
| 18 | 23 00 7 700 146 | GEAR WHEEL 3RD GEAR - 21 | - | |
| 19 | 23 00 7 700 153 | SHIFT GEAR FOR 4TH. GEAR - 23 | - | |
| 20 | 23 00 7 700 161 | STOP DISK - 21,2X30X1 | - | |
| 21 | 23 00 7 700 160 | NEEDLE CAGE - 21X25X10 | - | |
| 22 | 23 00 7 700 149 | GEAR WHEEL 1ST GEAR - 33 | - | |
| 23 | 23 00 7 700 159 | STOP DISK - 17,2X30X1 | - | |
| 24 | 23005B3EE58 | CHAIN PINION | - | |
27 71 7 700 154 | CHAIN PINION - 16 Z (to 12/15)Alternative for position 24 | - | ||
23005B3EE58 | CHAIN PINION - 16 ZAlternative for position 24 | - | ||
| 25 | 27 71 7 699 376 | DIAPHRAGM SPRING - 34X16,3X1,5 | - | |
| 26 | 23 00 7 699 377 | COLLAR BUSH | - | |
| 27 | 27 71 7 699 375 | SCREW - M10X35-8.8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
