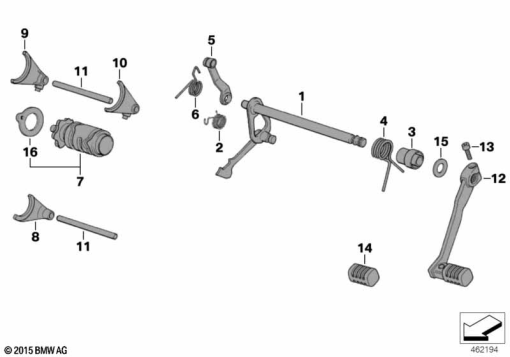

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 7 700 236 | SELECTOR SHAFT | - | |
| 2 | 23 00 7 700 164 | SPRING | - | |
| 3 | 23 00 7 700 165 | SPACER SLEEVE | - | |
| 5 | 23 00 7 700 186 | LEVER | - | |
| 6 | 23 00 7 700 166 | SPRING | - | |
| 7 | 23 00 7 700 167 | SHIFTING ROLL | - | |
| 8 | 23 00 7 700 272 | SHIFTING FORK 4TH AND 5TH GEAR | - | |
| 9 | 23 00 7 700 271 | SHIFTING FORK 2ND GEAR | - | |
| 10 | 23 00 7 700 270 | SHIFTING FORK 1ST AND 3RD GEAR | - | |
| 11 | 23 00 7 700 168 | SELECTOR ROD | - | |
| 12 | 23 41 7 652 942 | FOOT SHIFT LEVER | - | |
| 13 | 07 11 9 906 862 | HEX BOLT - M6X25-10.9 | - | |
| 14 | 23 41 7 655 284 | RUBBER GROMMET | - | |
| 15 | 23 00 7 700 159 | STOP DISK - 17,2X30X1 | - | |
| 16 | 23 00 7 700 234 | INSULATING WASHER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
