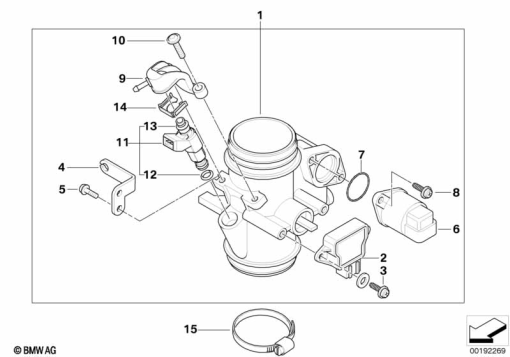

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 54 7 675 745 | THROTTLE HOUSING ASSY | 1 | |
| 2 | 13 63 1 436 000 | THROTTLE VALVE SWITCH | 1 | |
| 3 | 07 11 9 902 162 | FILLISTER-HEAD SCREW - M4X12 | 1 | |
| 4 | 13 54 7 654 888 | BRACKET FOR ACCELERATOR BOWDEN CABLE | 1 | |
| 2 | 13 54 7 655 405 | TORX BOLT - M5X14 | 1 | |
| 4 | 13 54 7 686 369 | BRACKET FOR ACCELERATOR BOWDEN CABLE - 25KW | 1 | |
| 2 | 13 54 7 655 405 | TORX BOLT - M5X14 | 1 | |
| 5 | 13 54 7 655 405 | TORX BOLT - M5X14 | 1 | |
| 6 | 13 53 7 679 998 | IDLE CONTROL DEVICE | 1 | |
| 7 | 13 54 7 654 909 | O-RING | 1 | |
| 8 | 07 12 9 905 120 | ISA SCREW - M5X16-U1-8.8 | 1 | |
| 9 | 13 53 7 654 962 | INJECTION NOZZLE SUPPORT | 1 | |
| 10 | 07 12 9 905 121 | ISA SCREW - M5X20-U1-8.8 | 1 | |
| 11 | 13 64 7 685 373 | INJECTION VALVE | 1 | |
| 12 | 13 64 1 437 476 | O-RING - 7,52X3,51 | 1 | |
| 13 | 13 64 7 675 557 | O-RING - 8,3X3,05 | 1 | |
| 14 | 13 53 7 688 795 | SPRING CLIP | 1 | |
| 15 | 13 72 7 654 865 | HOSE CLAMP - D=64 | 1 |
