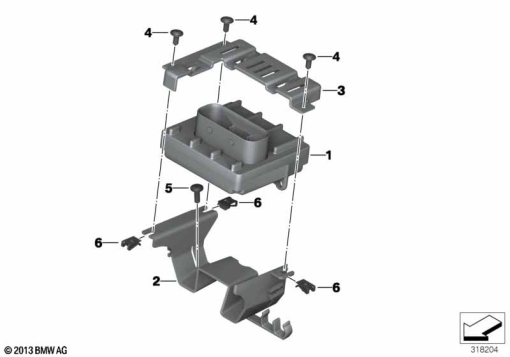

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 62 7 714 905 | CONTROL UNIT - BMS-C (to 04/13) | 1 | |
| 1 | 13 61 8 535 856 | CONTROL UNIT - BMS-E (from 04/13) | 1 | |
| 2 | 13 61 7 674 591 | CARRIER CONTROL UNIT (to 04/13) | 1 | |
| 2 | 13 61 8 535 038 | CARRIER CONTROL UNIT (from 04/13) | 1 | |
| 3 | 13 61 7 677 467 | COVER (to 04/13) | 1 | |
| 3 | 13 61 8 535 039 | COVER (from 04/13) | 1 | |
| 4 | 06 32 7 651 211 | FILLISTER HEAD SCREW - M5X12-A2-80 (to 04/13) | 1 | |
| 4 | 07 12 9 907 413 | TORX SCREW - M5X12-8.8-ZNNIV (from 04/13) | 1 | |
| 5 | 07 14 6 777 838 | OVAL-HEAD MACHINE SCREW, SELF-THREADING - M5X10-ZNNID SW | 1 | |
| 6 | 46 63 7 651 465 | PLUG-IN NUT - M5 | 1 |
