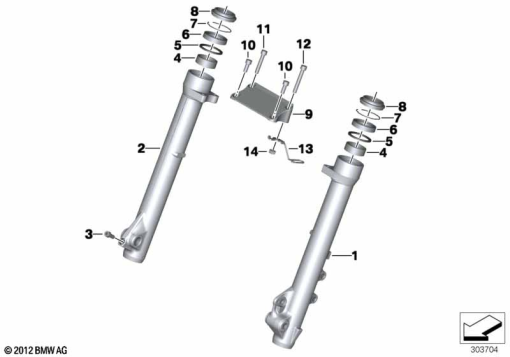

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 726 759 | INNER TUBE, BLACK, LEFT | - | |
| 2 | 31 42 7 726 760 | INNER TUBE, BLACK, RIGHT | - | |
| 3 | 07 12 9 904 065 | ISA SCREW - M8X20-8.8-ZNS3 | - | |
| 4 | 31 42 7 666 227 | GUIDE BUSH | - | |
| 5 | 31 42 7 666 226 | SHIM | - | |
| 6 | 31 42 7 666 225 | GASKET RING | - | |
| 7 | 31 42 7 666 224 | SUPPORTING RING | - | |
| 8 | 31 42 7 666 223 | DUST PROTECTION COLLAR - D=41MM | - | |
| 9 | 31 42 7 726 850 | STABILIZER, BLACK | - | |
| 10 | 07 12 9 905 981 | ISA SCREW - M8X20-A2-70 | - | |
| 11 | 07 12 9 907 293 | ISA SCREW - M8X45 | - | |
| 12 | 07 12 9 907 294 | ISA SCREW - M8X55 | - | |
| 13 | 34 32 7 651 549 | BRAKE PIPE BRACKET - ABS | - | |
| 14 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | - |
