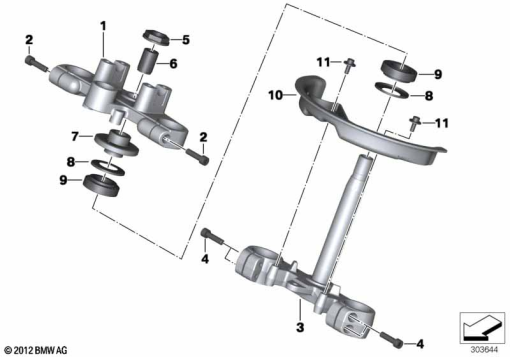

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 523 492 | FORK BRACE, SILVER, UPPER | 1 | |
| 2 | 07 12 9 904 815 | ISA SCREW - M8X30 | 1 | |
| 3 | 31 42 7 726 772 | FORK BRACE, BLACK, LOWER | 1 | |
| 4 | 07 12 9 904 067 | ISA SCREW - M8X30-8.8-ZNS3 | 1 | |
| 5 | 31 42 2 311 639 | COLLAR NUT SILVER - M22X0.75-ZNNIV | 1 | |
| 6 | 31 42 7 650 008 | COUNTER PIPE | 1 | |
| 7 | 31 42 7 650 006 | ADJUSTING RING | 1 | |
| 8 | 31 42 1 234 509 | RING | 1 | |
| 9 | 07 11 9 985 070SET | STEERING HEAD BEARING SET | 1 | |
| 9 | 31 42 7 663 941 | TAPERED ROLLER BEARING - 28X52X16 | 1 | |
| 10 | 46 63 2 350 003 | COVER | 1 | |
| 11 | 07 12 9 906 804 | ISA SCREW - M6X16-U2-8.8 | 1 |
