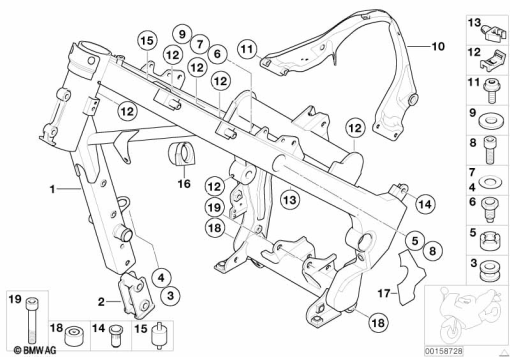

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 8 526 424 | MAIN FRAME - BLACK | - | |
| 2 | 46 51 7 650 968 | BLIND PLUG | - | |
| 3 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 4 | 46 63 1 451 278 | INSERT | - | |
| 5 | 46 51 7 652 156 | COUNTER NUT | - | |
| 6 | 46 51 7 652 158 | SLEEVE | - | |
| 7 | 46 51 7 652 153 | REINFORCEMENT - 12X31MM | - | |
| 8 | 07 11 9 906 313 | FILLISTER-HEAD SCREW | - | |
07 12 9 907 092 | ISA SCREW - M10X55Alternative for position 8 | - | ||
| 9 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 10 | 52 53 7 674 586 | HOLDER FRAME - US | - | |
| 11 | 07 12 9 902 330 | ISA SCREW - M6X16-Z1 | - | |
| 12 | 61 13 7 660 211 | CABLE STRAP BRACKET - BLACK | - | |
| 13 | 34 32 7 654 660 | BRACKET BRAKE PIPE RIGHT | - | |
| 14 | 46 51 2 331 720 | RIVETED NUT - M6 | - | |
| 15 | 61 21 2 305 050 | RUBBER MOUNTING | - | |
| 16 | 16 11 2 350 066 | DISTANCE RUBBER | - | |
| 17 | 46 51 7 660 858 | RIGHT PROTECTION FOIL | - | |
46 51 7 660 859 | LEFT PROTECTION FOILAlternative for position 17 | - | ||
| 18 | 46 51 7 658 421 | BLIND PLUG | - |
