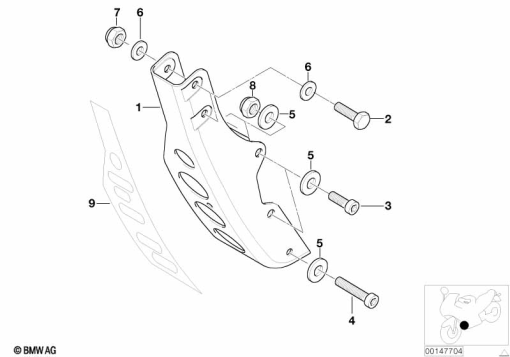

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 7 723 448 | ENGINE SUPPORT | 1 | |
| 2 | 07 11 9 905 974 | HEX BOLT - M8X60-ZNNIV SI | 1 | |
| 3 | 07 11 9 900 528 | FILLISTER-HEAD SCREW - M10X110 | 1 | |
| 4 | 07 11 9 900 528 | FILLISTER-HEAD SCREW - M10X110 | 1 | |
| 5 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | 1 | |
| 6 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | 1 | |
| 7 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | 1 | |
| 8 | 07 12 9 904 473 | HEX NUT - M10-10-ZNS3 | 1 |
