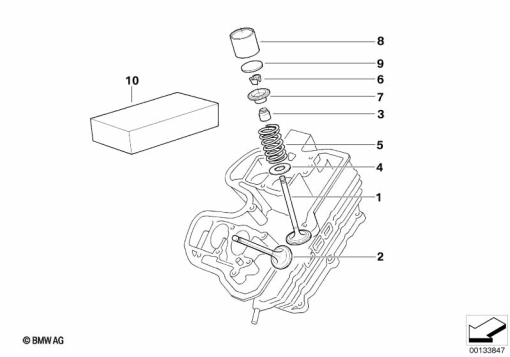

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 34 7 700 229 | INTAKE VALVE - D=36 | - | |
| 2 | 11 34 7 700 230 | EXHAUST VALVE - D=31 | - | |
| 3 | 11 34 7 700 315 | VALVE SEAL RING | - | |
| 4 | 11 34 7 700 231 | LOWER SPRING PLATE | - | |
| 5 | 11 34 7 675 302 | VALVE SPRING | - | |
| 6 | 11 34 7 700 252 | VALVE COLLET | - | |
| 7 | 11 34 7 700 292 | UPPER SPRING PLATE | - | |
| 8 | 11 32 7 675 300 | VALVE LIFTER | - | |
| 9 | 11 32 7 675 540 | SPACER - 2,30MM | - | |
11 32 7 675 542 | SPACER - 2,35MMAlternative for position 9 | - | ||
11 32 7 675 707 | SPACER - 2,40MMAlternative for position 9 | - | ||
11 32 7 675 709 | SPACER - 2,45MMAlternative for position 9 | - | ||
11 32 7 675 711 | SPACER - 2,50MMAlternative for position 9 | - | ||
11 32 7 675 713 | SPACER - 2,55MMAlternative for position 9 | - | ||
11 32 7 675 715 | SPACER - 2,60MMAlternative for position 9 | - | ||
11 32 7 675 717 | SPACER - 2,65MMAlternative for position 9 | - | ||
11 32 7 675 719 | SPACER - 2,70MMAlternative for position 9 | - | ||
11 32 7 675 777 | SPACER - 2,75MMAlternative for position 9 | - | ||
11 32 7 675 779 | SPACER - 2,80MMAlternative for position 9 | - | ||
11 32 7 675 781 | SPACER - 2,85MMAlternative for position 9 | - | ||
11 32 7 675 783 | SPACER - 2,90MMAlternative for position 9 | - | ||
11 32 7 675 785 | SPACER - 2,95MMAlternative for position 9 | - | ||
11 32 7 675 787 | SPACER - 3,00MMAlternative for position 9 | - |
