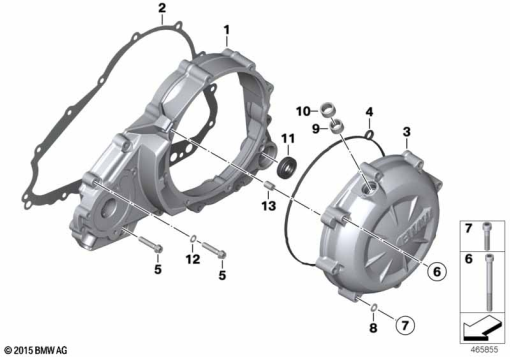

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 7 727 867 | BELLHOUSING, ANTHRACITE | 1 | |
| 2 | 11 14 7 706 498 | GASKET | 1 | |
| 3 | 11 14 7 727 866 | BELLHOUSING COVER, ANTHRACITE | 1 | |
| 4 | 11 14 7 700 194 | GASKET | 1 | |
| 5 | 11 11 7 706 514 | HEXAGON BOLT WITH INSIDE TORX - M6X30-8.8 | 1 | |
| 6 | 11 14 7 699 388 | FILLISTER-HEAD SCREW - M6X85 | 1 | |
| 7 | 11 14 7 699 391 | FILLISTER-HEAD SCREW - M6X40 | 1 | |
| 8 | 11 14 7 708 015 | WASHER - 6,2/10,8/1 | 1 | |
| 9 | 21 21 7 701 501 | NEEDLE SLEEVE - 8X12X8 | 1 | |
| 10 | 21 21 7 700 120 | NEEDLE SLEEVE - 12X16X10 | 1 | |
| 11 | 11 14 7 700 121 | SHAFT SEAL - 12X28X7 | 1 | |
| 12 | 11 14 2 343 240 | GASKET RING - A6X10 | 1 | |
| 13 | 11 11 7 700 106 | ROLL PIN - 8X12MM | 1 |
