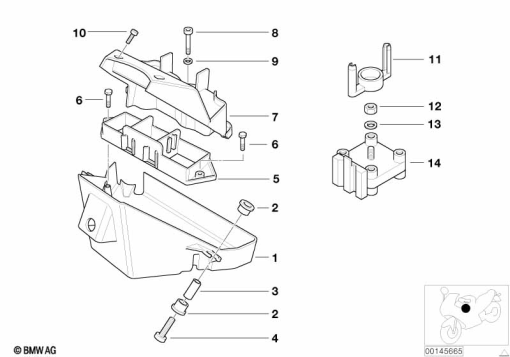

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 11 2 346 547 | BOTTOM PART, E-BOX | - | |
| 2 | 62 21 2 306 283 | BUSH | - | |
| 3 | 62 21 7 670 749 | RUBBER GROMMET - 8X18X12MM | - | |
| 4 | 07 12 9 902 363 | SCREW - M6X30 BLACK | - | |
| 5 | 61 11 2 346 548 | CARRIER RELAY | - | |
61 13 7 677 465 | RELAY CARRIERAlternative for position 5 | - | ||
| 6 | 07 14 7 195 855 | FILLISTER HEAD SCREW | - | |
| 7 | 61 11 2 346 546 | COVER ELECTRONIC-BOX | - | |
| 8 | 11 11 7 706 277 | TORX BOLT - M6X45 | - | |
| 9 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
07 11 9 913 589 | HEX BOLT - M6X25Alternative for position 9 | - | ||
| 10 | 06 32 7 657 949 | FILLISTER HEAD SCREW - M5X16-A2-80-MK | - | |
| 11 | 12 52 1 714 254 | COVER | - | |
| 12 | 61 21 1 459 656 | HEX NUT - M6 | - | |
| 13 | 61 21 7 670 327 | SPRING WASHER - B6 | - | |
| 14 | 12 52 1 710 719 | BASE B+ | - | |
| - | 61 13 1 382 541 | BRACKET, PLUG CONNECTION GRAY | - |
