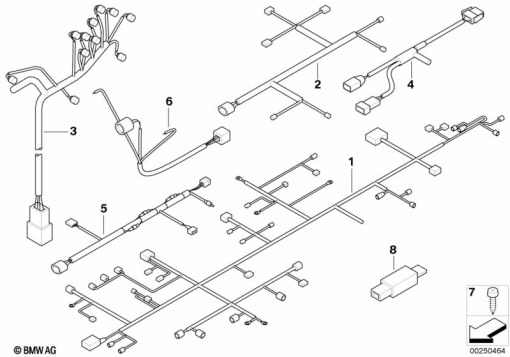

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 11 7 724 414 | MAIN WIRING HARNESS - ABS / BMS-C (08/12 to 04/13) | - | |
61 11 8 526 174 | MAIN WIRING HARNESS - ABS / BMS-E (04/13 to 03/15)Alternative for position 1 | - | ||
61 11 8 552 923 | MAIN WIRING HARNESS - BMS-E (from 03/15)Alternative for position 1 | - | ||
61 11 7 724 414 | MAIN WIRING HARNESS - ABS / BMS-C (to 08/12)Alternative for position 1 | - | ||
61 11 7 724 413 | MAIN WIRING HARNESS - BMS-C (to 08/12)Alternative for position 1 | - | ||
| 2 | 61 11 7 652 030 | TAIL PART WIRING HARNESS | - | |
61 11 7 691 854 | TAIL PART WIRING HARNESSAlternative for position 2 | - | ||
| 5 | 61 11 7 691 853 | ADAPTER CABLE, ALARM SYSTEM | - | |
| 7 | 07 12 9 906 072 | ISA SCREW - M6X12 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
