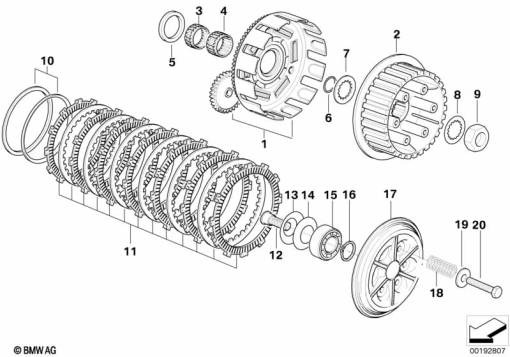

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 7 700 181 | COUPLNG CAP | - | |
| 2 | 21 21 7 700 246 | DRIVING DOG | - | |
| 3 | 21 21 7 700 387 | NEEDLE CAGE - 25X29X13 | - | |
| 4 | 21 21 7 700 139 | NEEDLE CAGE - 25X29X17 | - | |
| 5 | 21 21 7 700 386 | SUPPORT - 25X35X2 | - | |
| 6 | 21 21 7 700 388 | O-RING - 17X1,5 | - | |
| 7 | 21 21 7 700 140 | STOP DISK - 20X38X3 | - | |
| 8 | 21 21 7 700 141 | SECURING PLATE | - | |
| 9 | 21 21 2 343 503 | HEX NUT - M18X1,5 | - | |
| 10 | 21 21 7 714 226 | SET: JUDDER SPRING/SUPPORT DISK | - | |
| 11 | 21 21 7 700 413 | SET: LAMELLAR PACKAGE | - | |
| 12 | 21 21 7 709 526 | RELEASE BEARING | - | |
| 13 | 21 21 7 700 144 | DIAPHRAGM SPRING - 25,7X14,3X0,4 | - | |
| 14 | 21 21 7 701 500 | BALL CUP | - | |
| 15 | 21 21 7 700 143 | GROOVED BALL BEARING - 15X32X9 | - | |
| 16 | 07 11 9 902 398 | LOCK RING - 14X1 | - | |
| 17 | 21 21 7 700 142 | PLATE | - | |
| 18 | 21 21 7 700 412 | SET: SPRING SET | - | |
| 19 | 21 21 7 700 187 | STEP PLATE | - | |
| 20 | 21 21 7 706 614 | TORX BOLT - M6X25-8.8 | - |
