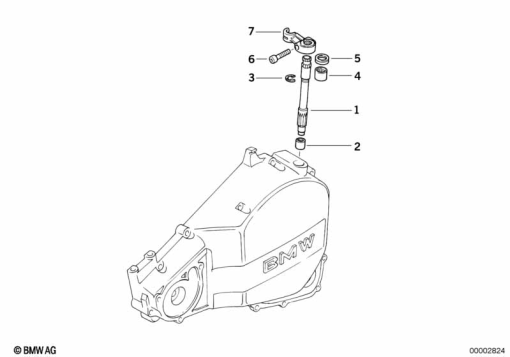

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 21 21 7 700 306 | OPERATING SHAFT - 11 | - | |
| 2 | 21 21 7 701 501 | NEEDLE SLEEVE - 8X12X8 | - | |
| 3 | 21 21 2 343 258 | CIRCLIP | - | |
| 4 | 21 21 7 700 120 | NEEDLE SLEEVE - 12X16X10 | - | |
| 5 | 21 21 7 700 173 | SHAFT SEAL - 12X18X4,5 | - | |
| 7 | 21 21 7 700 227 | CLUTCH REL.FORK LEVER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
