Parts List (9)

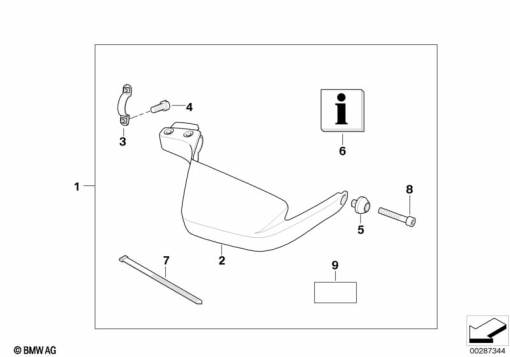

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 32 8 526 930 | SET: SET HAND PROTECTOR | - | |
| 2 | 71 60 7 653 854 | HAND PROTECTOR RIGHT | - | |
71 60 7 682 224 | HAND PROTECTOR LEFTAlternative for position 2 | - | ||
| 3 | 71 60 7 659 140 | PIPE CLAMP | - | |
| 4 | 06 32 7 651 204 | FILLISTER HEAD SCREW - M6X16-A2-80 | - | |
| 5 | 32 71 7 659 838 | SPACER | - | |
| 6 | 77 01 8 526 929 | INSTALL.INSTRUCTIONS, HAND PROTECTOR - F650GS | - | |
| 7 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 8 | 07 11 9 904 509 | FILLISTER-HEAD SCREW - M6X60-8.8-ZNS3 | - |
