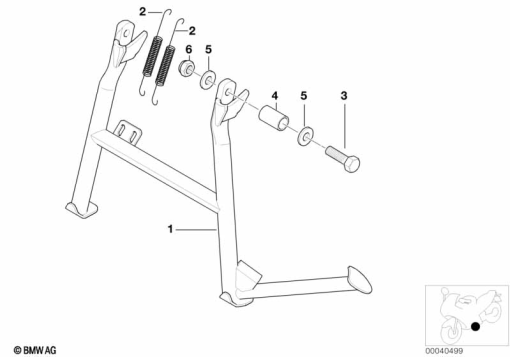

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 7 669 895 | CENTER STAND | - | |
46 52 7 686 769 | CENTER STANDAlternative for position 1 | - | ||
| 2 | 46 52 7 650 721 | TENSION SPRING | - | |
| 3 | 07 12 9 904 984 | TORX BOLT - M10X50-ZNS3 | - | |
| 4 | 46 52 7 652 164 | SLEEVE | - | |
| 5 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 6 | 07 12 9 904 879 | HEX NUT - M10-10-ZNS3 (to 12/90) | - | |
07 12 9 964 672 | SELF-LOCKING HEX NUTAlternative for position 6 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI (to 12/90)Alternative for position 6 | - | ||
07 12 9 964 672 | SELF-LOCKING HEX NUT - M10Alternative for position 6 | - |
