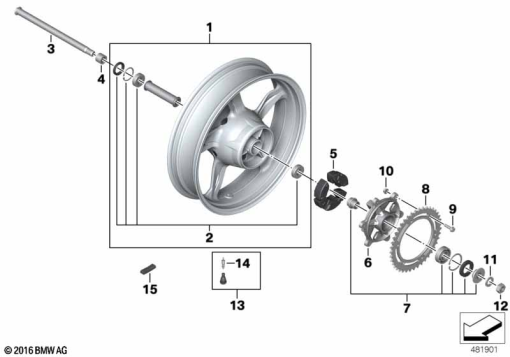

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 558 270 | BLACK REAR WHEEL | - | |
36 31 7 653 064 | VALVE - D=15MMAlternative for position 1 | - | ||
| 2 | 36 31 8 566 520 | SET: SET OF WHEEL BEARINGS | - | |
| 3 | 36 31 8 554 143 | AXLE SHAFT REAR | - | |
| 4 | 36 31 8 552 999 | SPACER BUSH | - | |
| 5 | 33 85 7 108 420 | JERK DAMPER | - | |
33 85 7 108 420 | JERK DAMPERAlternative for position 5 | - | ||
| 6 | 33 85 8 560 453 | SPROCKET HUB | - | |
| 7 | 33 85 8 388 817 | SET: SET BEARING CHAIN SPROCKET CARRIER | - | |
| 8 | 33 84 8 560 450 | SPROCKET - 40 | - | |
| 9 | 23 20 8 564 415 | HEXAGON SCREW WITH FLANGE - M8X30-10.9-ZNNI | - | |
| 10 | 33 85 8 560 459 | FLANGE NUT - M8X1.25 | - | |
| 11 | 36 31 8 560 290 | WASHER - 18,5X32X3,2 | - | |
| 12 | 36 31 8 560 141 | HEX NUT - M18X1,5 | - | |
| 13 | 36 31 7 653 064 | VALVE - D=15MM | - | |
| 14 | 36 31 7 683 236 | VALVE - L=20MM | - | |
| 15 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 15 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 15 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 15 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 15 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 15 | - |
