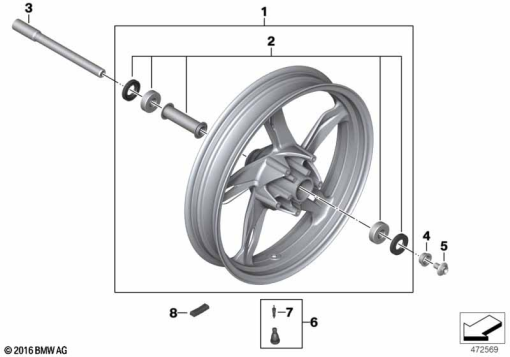

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 562 026 | BLACK FRONT WHEEL - 2.50X19 | - | |
36 31 7 653 064 | VALVE - D=15MMAlternative for position 1 | - | ||
| 2 | 36 31 8 566 519 | SET: SET OF WHEEL BEARINGS | - | |
| 3 | 36 31 8 554 141 | FLOATING AXLE, FRONT | - | |
| 4 | 36 31 8 560 209 | SPACER BUSH | - | |
| 5 | 36 31 8 560 230 | HEX BOLT - M12X20-8.8 ZNS3 | - | |
| 6 | 36 31 7 653 064 | VALVE - D=15MM | - | |
| 7 | 36 31 7 683 236 | VALVE - L=20MM | - | |
| 8 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 8 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 8 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 8 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 8 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 8 | - |
