Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 13 8 534 354 | TURN INDICATOR - SAE | - | |
| 2 | 63 13 8 534 355 | TURN INDICATOR - SAE | - | |
| 3 | 63 13 8 534 350 | LAMP LENS | - | |
| 4 | 63 13 8 534 351 | LAMP LENS | - | |
| 6 | 63 21 7 169 203 | BULB - 10W RY10W | - | |
| 7 | 61 12 7 699 594 | CONNECTION CABLE - L=330MM | - | |
| 8 | 11 11 8 557 331 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 9 | 63 13 8 358 251 | WASHER - 12X6.4X1.6 | - | |
| 10 | 33 35 8 522 742 | NUT - M6-8-ZNNIV | - |

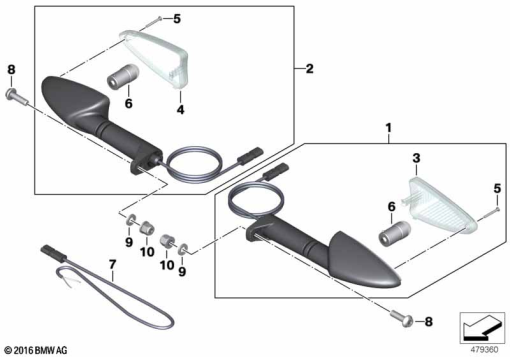

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
