G310GS 16 (K02) | Lighting

REFLECTORS

Diagram #63_1943 | 4 parts

100%

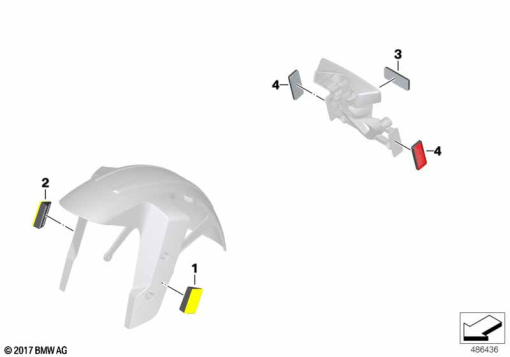

G310GS 16 (K02) REFLECTORS exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
63 14 8 565 844
REAR REFLECTOR YELLOW LEFT1
2
63 14 8 355 138
REAR REFLECTOR YELLOW RIGHT1
3
63 14 9 443 540
REFLECTOR - RED 77X301
4
63 14 8 566 741
REFLECTOR, RED - 77X301
