G310GS 16 (K02) | Fuel Preparation
INTAKE SILENCER / FILTER CARTRIDGE INTAKE SILENCER / FILTER CART

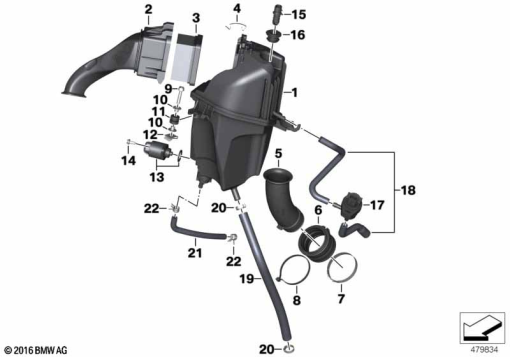

Diagram #13_1890 | 22 parts
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 8 558 303 | INTAKE MUFFLER | - | |
| 2 | 13 71 8 556 563 | INTAKE SNORKEL | - | |
| 3 | 13 71 8 556 564 | AIR FILTER ELEMENT | - | |
| 4 | 13 71 8 558 304 | CLAMP | - | |
| 5 | 13 71 8 556 565 | SUCTION FUNNEL | - | |
| 6 | 13 71 8 556 566 | INTAKE MANIFOLD | - | |
| 7 | 11 61 7 680 689 | MUFFLER CLAMP - D=61MM, B=9MM | - | |
| 8 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - | |
| 9 | 11 13 8 562 751 | INNER HEX BOLT - M6X30-8.8-ZNNIV | - | |
| 10 | 13 71 8 564 874 | BUSH | - | |
| 11 | 62 21 7 670 749 | RUBBER GROMMET - 8X18X12MM | - | |
| 12 | 07 14 7 693 887 | C-CLIP NUT - M6 | - | |
| 13 | 13 71 8 569 813 | IDLE CONTROL DEVICE | - | |
| 14 | 11 12 8 562 723 | INNER HEX BOLT - M5X12-8.8-ZNNIV | - | |
| 15 | 13 71 8 560 812 | INTAKE AIR TEMPERATURE SENSOR | - | |
| 16 | 13 71 8 564 486 | RUBBER GROMMET | - | |
| 17 | 11 73 8 556 600 | SWITCHING VALVE, SECONDARY AIR INJECTION | - | |
| 18 | 13 71 8 569 877 | SET: SET OF HOSES | - | |
| 19 | 11 15 8 555 667 | HOSE | - | |
| 20 | 13 71 8 558 332 | CLAMP - D=17MM, B=8MM | - | |
| 21 | 16 13 8 569 874 | SET: SET OF HOSES | - | |
| 22 | 16 13 8 565 760 | HOSE CLAMP - D=11MM, B=8MM | - |
