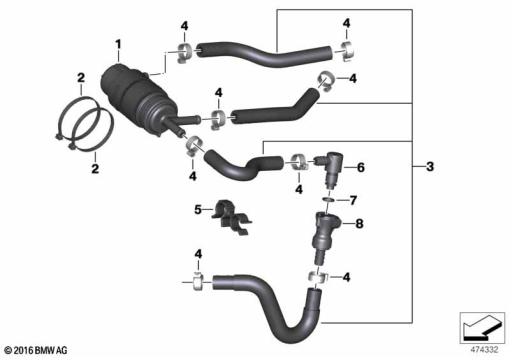

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 53 8 569 876 | SET: SET FUEL FILTER | - | |
13 53 8 567 882 | SET: SET FUEL HOSESAlternative for position 1 | - | ||
| 2 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - | |
| 3 | 13 53 8 567 882 | SET: SET FUEL HOSES | - | |
| 4 | 16 12 1 176 918 | HOSE CLAMP - 13,1-15,3 | - | |
| 5 | 11 53 8 556 559 | HOSE CLAMP, DOUBLE | - | |
| 6 | 13 53 7 674 765 | QUICK-RELEASE COUPLING - 90° | - | |
| - | 13 53 8 567 882 | SET: SET FUEL HOSES | - | |
| 7 | 13 53 7 700 797 | O-RING | - | |
| 8 | 13 31 7 659 120 | CONNECTING SLEEVE | - | |
| - | 13 53 8 567 882 | SET: SET FUEL HOSES | - |
