G310GS 16 (K02) | Frame, Fairing, Cases

CHAIN GUARD

Diagram #46_1868 | 2 parts

100%

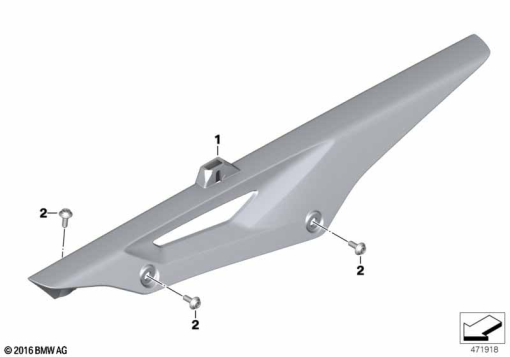

G310GS 16 (K02) CHAIN GUARD exploded view parts diagram

Parts List (2)

#Part NumberDescriptionQty
1
46 63 8 557 612
CHAIN GUARD1
2
46 63 8 558 349
BODY SCREW WITH SHOULDER - M5X141
