G310GS 16 (K02) | Frame, Fairing, Cases

BATTERY TRAY

Diagram #46_1869 | 3 parts

100%

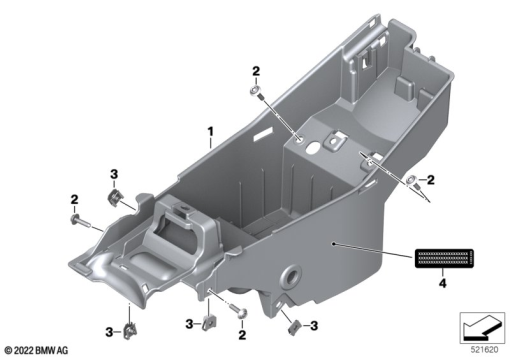

G310GS 16 (K02) BATTERY TRAY exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 63 8 556 886
BATTERY TRAY1
2
46 63 8 558 357
BODY SCREW WITHOUT SHOULDER - M5X20-A21
3
46 63 8 532 314
C-CLIP NUT, SELF-LOCKING - M51
