G310GS 16 (K02) | Engine

TIMING GEAR - INTAKE VALVE/EXHAUST VALVE

Diagram #11_6667 | 58 parts

100%

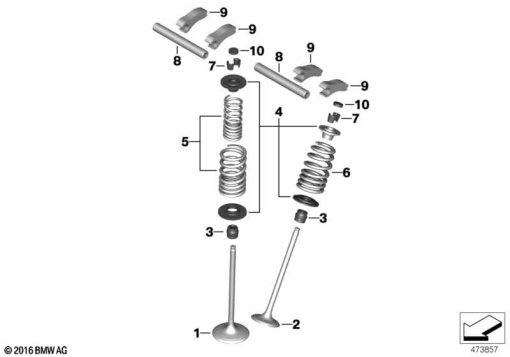

G310GS 16 (K02) TIMING GEAR - INTAKE VALVE/EXHAUST VALVE exploded view parts diagram

Parts List (58)

#Part NumberDescriptionQty
1
11 34 8 562 845
INTAKE VALVE-
2
11 34 8 562 851
EXHAUST VALVE-
3
11 34 1 340 849
VALVE SEAL RING - D=5-
4
11 34 8 566 429
SET: SET VALVE SPRING CUPS-
5
11 34 8 527 619
SET, VALVE SPRINGS, INTAKE VALVE-
6
11 34 8 543 638
VALVE SPRING EXHAUST VALVE-
7
11 34 8 562 848
VALVE COLLET-
8
11 33 8 562 856
ROCKER ARM SHAFT-
9
11 33 8 405 623
ROCKER ARM-
10
11 34 7 718 085
ADJUSTING PLATE - 1,72 MM-
11 34 8 563 561
ADJUSTING PLATE - 1,72 MMAlternative for position 10-
11 34 7 719 083
ADJUSTING PLATE - 1,74 MMAlternative for position 10-
11 34 8 563 563
ADJUSTING PLATE - 1,74 MMAlternative for position 10-
11 34 7 718 086
ADJUSTING PLATE - 1,76 MMAlternative for position 10-
11 34 8 563 565
ADJUSTING PLATE - 1,76 MMAlternative for position 10-
11 34 8 563 569
Adjusting plateAlternative for position 10-
11 34 7 718 088
ADJUSTING PLATE - 1,84 MMAlternative for position 10-
11 34 8 563 573
ADJUSTING PLATE - 1,84 MMAlternative for position 10-
11 34 7 718 090
ADJUSTING PLATE - 1,92 MMAlternative for position 10-
11 34 8 563 581
ADJUSTING PLATE - 1,92 MMAlternative for position 10-
11 34 7 718 091
ADJUSTING PLATE - 1,96 MMAlternative for position 10-
11 34 8 563 585
ADJUSTING PLATE - 1,96 MMAlternative for position 10-
11 34 7 719 089
ADJUSTING PLATE - 1,98 MMAlternative for position 10-
11 34 8 563 587
ADJUSTING PLATE - 1,98 MMAlternative for position 10-
11 34 8 563 567
ADJUSTING PLATE - 1,78 MMAlternative for position 10-
11 34 8 563 569
ADJUSTING PLATE - 1,80 MMAlternative for position 10-
11 34 8 563 571
ADJUSTING PLATE - 1,82 MMAlternative for position 10-
11 34 8 563 575
ADJUSTING PLATE - 1,86 MMAlternative for position 10-
11 34 8 563 577
ADJUSTING PLATE - 1,88 MMAlternative for position 10-
11 34 7 719 087
ADJUSTING PLATE - 1,90 MMAlternative for position 10-
11 34 8 563 579
ADJUSTING PLATE - 1,90 MMAlternative for position 10-
11 34 8 563 583
ADJUSTING PLATE - 1,94 MMAlternative for position 10-
11 34 8 563 589
ADJUSTING PLATE - 2,00 MMAlternative for position 10-
11 34 8 563 591
ADJUSTING PLATE - 2,02 MMAlternative for position 10-
11 34 8 563 593
ADJUSTING PLATE - 2,04 MMAlternative for position 10-
11 34 7 719 091
ADJUSTING PLATE - 2,06 MMAlternative for position 10-
11 34 8 563 595
ADJUSTING PLATE - 2,06 MMAlternative for position 10-
11 34 8 563 597
ADJUSTING PLATE - 2,08 MMAlternative for position 10-
11 34 8 563 599
ADJUSTING PLATE - 2,10 MMAlternative for position 10-
11 34 8 563 615
ADJUSTING PLATEAlternative for position 10-
11 34 8 563 601
ADJUSTING PLATE - 2,12 MMAlternative for position 10-
11 34 8 563 603
ADJUSTING PLATE - 2,14 MMAlternative for position 10-
11 34 8 563 605
ADJUSTING PLATE - 2,16 MMAlternative for position 10-
11 34 8 563 607
ADJUSTING PLATE - 2,18 MMAlternative for position 10-
11 34 8 563 623
ADJUSTING PLATEAlternative for position 10-
11 34 8 563 609
ADJUSTING PLATE - 2,20 MMAlternative for position 10-
11 34 8 563 625
Adjusting plate 2,36 MMAlternative for position 10-
11 34 8 563 611
ADJUSTING PLATE - 2,22 MMAlternative for position 10-
11 34 8 563 627
Adjusting plate 2,38 MMAlternative for position 10-
11 34 8 563 613
ADJUSTING PLATE - 2,24 MMAlternative for position 10-
11 34 8 563 615
ADJUSTING PLATE - 2,26 MMAlternative for position 10-
11 34 8 563 617
ADJUSTING PLATE - 2,28 MMAlternative for position 10-
11 34 8 563 619
ADJUSTING PLATE - 2,30 MMAlternative for position 10-
11 34 8 563 621
ADJUSTING PLATE - 2,32 MMAlternative for position 10-
11 34 8 563 623
ADJUSTING PLATE - 2,34 MMAlternative for position 10-
11 34 8 563 625
ADJUSTING PLATE - 2,36 MMAlternative for position 10-
11 34 8 563 627
ADJUSTING PLATE - 2,38 MMAlternative for position 10-
11 34 8 563 629
ADJUSTING PLATE - 2,40 MMAlternative for position 10-
