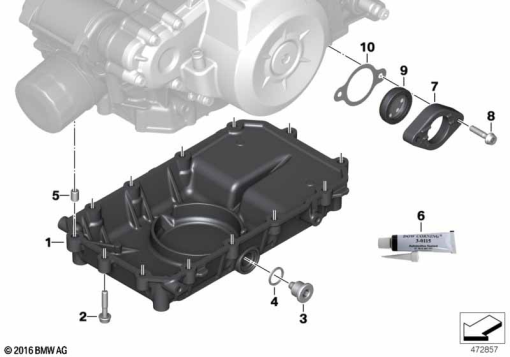

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 13 8 562 747 | OIL PAN | - | |
| 2 | 11 13 8 562 751 | INNER HEX BOLT - M6X30-8.8-ZNNIV | - | |
| 3 | 11 13 7 720 999 | SCREW PLUG, MAGNETIC - M16X1,5-ZNNIV (to 04/23) | - | |
07145A71AF9 | SCREW PLUG. MAGNET - M16X1,5Alternative for position 3 | - | ||
| 4 | 07 11 9 963 252 | GASKET RING - A16X20-AL | - | |
| 5 | 11 11 8 387 652 | SET: SET OF FITTING SLEEVES | - | |
| 6 | 07 58 0 397 777 | SEALING COMPOUND DOW CORNING - 35ML | - | |
| 7 | 11 43 8 562 890 | FLANGE | - | |
| 8 | 11 11 8 562 772 | HEXAGON SOCKET SCREW WITH FLANGE - M6X25-8.8-ZNNIV | - | |
| 9 | 11 11 8 523 921 | OIL-LEVEL CHECK | - | |
| 10 | 11 43 8 562 891 | GASKET | - |
