G310GS 16 (K02) | Engine

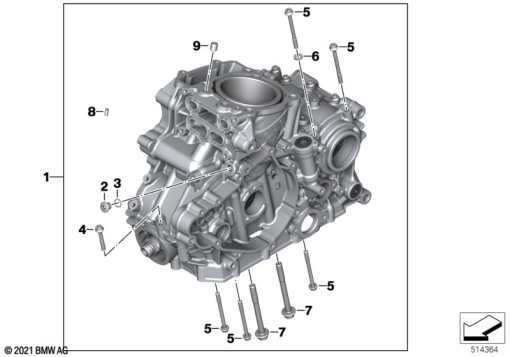

ENGINE HOUSING MOUNTING PARTS
Diagram #11_6637 | 12 parts | 1 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 1 541 098 | SET: KIT FOR MOTOR HOUSING - TITAN GREY (to 01/20) | 1 | |
| 1 | 11 42 9 480 486 | OIL SPRAYING NOZZLE (to 01/20) | 1 | |
| 1 | 11 24 7 923 441 | CONNECTING ROD (to 01/20) | 1 | |
| 1 | 11 11 1 541 098 | SET: KIT FOR MOTOR HOUSING - TITAN GREY (from 12/19) | 1 | |
| 2 | 11 12 8 562 726 | SCREW PLUG, INNER HEXAGON - M10X1X9-ZNNIV | 1 | |
| 3 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | 1 | |
| 4 | 11 11 8 562 700 | HEXAGON SOCKET SCREW WITH FLANGE - M6X40-8.8-ZNNIV | 1 | |
| 5 | 11 11 8 562 702 | HEXAGON SOCKET SCREW WITH FLANGE - M6X70-8.8-ZNNIV | 1 | |
| 6 | 11 11 8 562 771 | GASKET RING - 6X12X1-AL | 1 | |
| 7 | 11 11 8 562 701 | HEXAGON SCREW WITH FLANGE - M9X95-10.9 | 1 | |
| 8 | 23 30 8 387 651 | SET: SET CYLINDRICAL PINS | 1 | |
| 9 | 11 11 8 559 177 | NON-RETURN VALVE | 1 |
