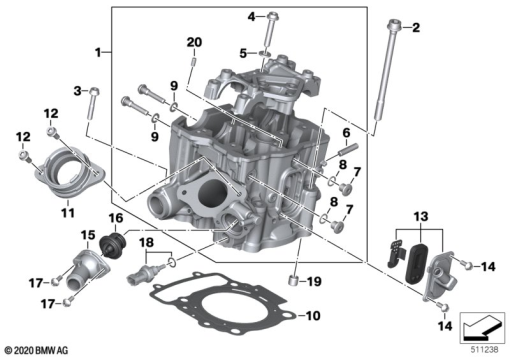

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 8 387 655 | SET: SET CYLINDER HEADS | - | |
| 2 | 11 12 8 562 725 | CYLINDER HEAD BOLT - M9X125-10.9 | - | |
| 3 | 11 12 8 562 732 | INNER HEX BOLT - M6X35-8.8-ZNNIV | - | |
| 4 | 11 12 8 562 714 | INNER HEX BOLT - M7X38-10.9-PHR | - | |
| 5 | 11 12 7 713 823 | WASHER - 15X7,2X2 | - | |
| 6 | 07 12 9 903 893 | STUD BOLT - M7X30-8.8-ZNS3 | - | |
| 7 | 11 12 8 562 726 | SCREW PLUG, INNER HEXAGON - M10X1X9-ZNNIV | - | |
| 8 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | - | |
| 9 | 07 11 9 903 546 | GASKET RING - A8X13X1-AL | - | |
| 10 | 11 12 1 540 548 | CYLINDER HEAD GASKET | - | |
11 12 8 562 739 | CYLINDER HEAD GASKET (to 01/21)Alternative for position 10 | - | ||
11 12 1 540 548 | CYLINDER HEAD GASKETAlternative for position 10 | - | ||
| 11 | 11 12 8 562 736 | INTAKE MANIFOLD | - | |
| 12 | 11 44 8 562 863 | HEXAGON SOCKET SCREW WITH FLANGE - M6X16-8.8-ZNNIV | - | |
| 13 | 11 12 8 566 405 | SET: SET HOUSING COVER SECONDARY AIR SYSTEM | - | |
| 14 | 11 12 8 562 723 | INNER HEX BOLT - M5X12-8.8-ZNNIV | - | |
| 15 | 11 53 8 562 894 | COVER, THERMOSTAT HOUSING | - | |
| 16 | 11 53 8 562 895 | THERMOSTAT | - | |
| 17 | 11 12 8 562 723 | INNER HEX BOLT - M5X12-8.8-ZNNIV | - | |
| 18 | 12 62 8 560 814 | COOLANT TEMPERATURE SENSOR | - | |
| 19 | 11 11 8 387 652 | SET: SET OF FITTING SLEEVES | - | |
| 20 | 23 30 8 387 651 | SET: SET CYLINDRICAL PINS | - |
