G310GS 16 (K02) | Electrical System

STARTER RELAY

Diagram #61_5404 | 3 parts

100%

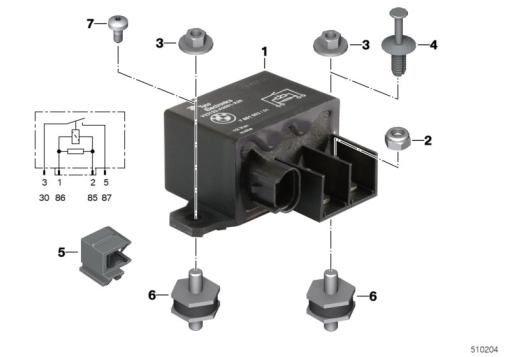

G310GS 16 (K02) STARTER RELAY exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
61 36 9 207 913
RELAY - 600W EWP + DKG1
2
07 14 6 973 709
NUT - M61
7
46 63 8 558 358
BODY SCREW WITHOUT SHOULDER - M5X141
