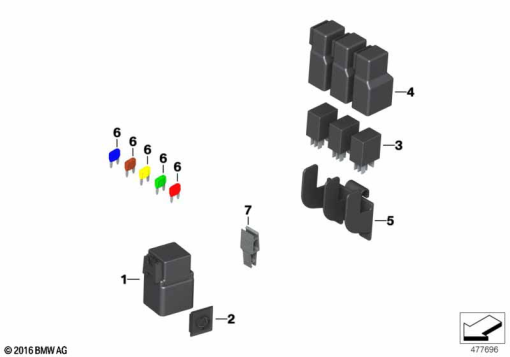

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 36 9 207 913 | RELAY - 600W EWP + DKG | - | |
| 2 | 61 13 1 378 964 | BRACKET, PLUG CONNECTION BLACK | - | |
| 3 | 61 36 8 559 622 | RELAY, MAKE CONTACT, BLACK - 35A | - | |
| 4 | 61 36 8 560 722 | COVER | - | |
| 5 | 61 13 8 525 494 | BRACKET FOR RELAY | - | |
| 6 | 61 13 6 917 402 | FUSE MINI, BROWN - 7,5A | - | |
61 13 6 917 403 | FUSE MINI, RED - 10AAlternative for position 6 | - | ||
61 13 6 917 404 | FUSE MINI, BLUE - 15AAlternative for position 6 | - | ||
61 13 6 942 071 | FUSE MINI, YELLOW - 20AAlternative for position 6 | - | ||
61 13 9 230 533 | FUSE, MINI, GREEN - 30AAlternative for position 6 | - | ||
| 7 | 61 13 7 668 722 | GRIPPER CLIP FOR MINIATURE FUSES | - |
