Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 11 8 558 350 | RADIATOR | - | |
| 2 | 17 11 7 914 009 | COVER LID - 1.5BAR | - | |
| 3 | 11 11 8 562 772 | HEXAGON SOCKET SCREW WITH FLANGE - M6X25-8.8-ZNNIV | - | |
| 4 | 07 14 6 977 329 | WASHER - 6,4X25X1,5 | - | |
| 5 | 17 11 7 722 131 | GROMMET | - | |
| 6 | 46 63 1 451 278 | INSERT | - | |
| 7 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 8 | 07 14 7 693 887 | C-CLIP NUT - M6 | - | |
| 9 | 17 11 8 558 355 | 0.01 | - | |
| 10 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 11 | 07 12 9 906 727 | CLIP - 12-ZNS3 | - | |
| 15 | 17 11 8 569 875 | SET: SET OF RADIATOR HOSES | - | |
| 16 | 64 21 7 518 579 | HOSE CLAMP - D=27MM | - | |
| 17 | 64 21 7 677 705 | SPRING RING SHELL - D=32MM | - | |
| 18 | 17 12 7 523 358 | SPRING RING SHELL - D=14MM | - | |
| 19 | 17 12 8 564 462 | SPRING RING SHELL - D=11,5MM | - |

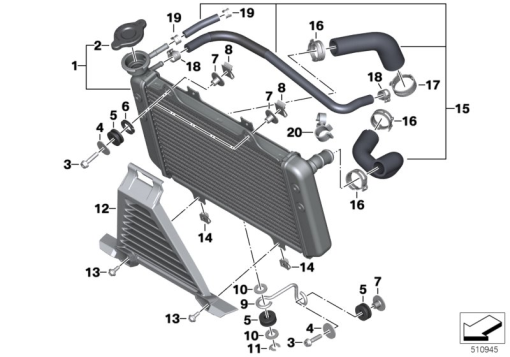

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
