G310GS 16 (K02) | Cooling

FAN

Diagram #17_1075 | 3 parts

100%

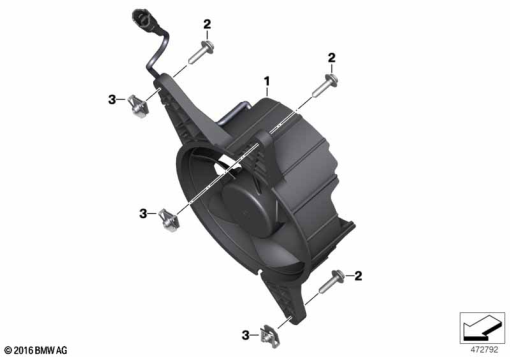

G310GS 16 (K02) FAN exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
17 42 8 555 494
FAN HOUSING WITH FAN1
2
46 63 8 558 357
BODY SCREW WITHOUT SHOULDER - M5X20-A21
3
46 63 8 532 314
C-CLIP NUT, SELF-LOCKING - M51
