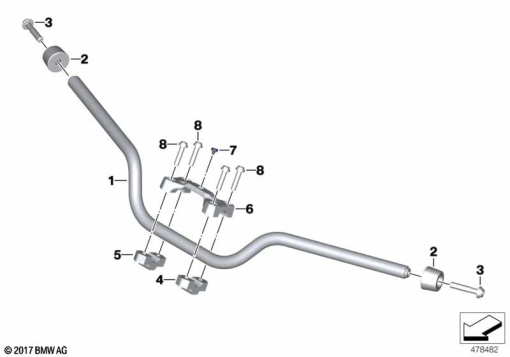

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32715A76279 | LENKER - SILVER | - | |
32 71 1 697 912 | LENKER - BLACKAlternative for position 1 | - | ||
| 2 | 32 71 8 526 494 | HANDLEBAR VIBRATION ABSORBER | - | |
| 3 | 07 12 9 907 390 | FILLISTER-HEAD SCREW - M10X50-8.8 | - | |
| 4 | 32 71 1 697 931 | HANDLEBAR EXTENSION | - | |
| 5 | 32 71 1 697 931 | HANDLEBAR EXTENSION | - | |
| 6 | 32 71 8 565 014 | CONTROL ARM BRIDGE | - | |
| 7 | 31 42 7 700 545 | BADGE | - | |
| 8 | 07 12 9 907 376 | FILLISTER-HEAD SCREW - M8X60-8.8 ZNNIV | - | |
07 12 9 909 870 | FILLISTER-HEAD SCREW - M8X35 ZNNIV SIAlternative for position 8 | - |
