F900GS 22 (K81) | Steering

CONTROL ASSEMBLY FITTING

Diagram #32_2400 | 10 parts

100%

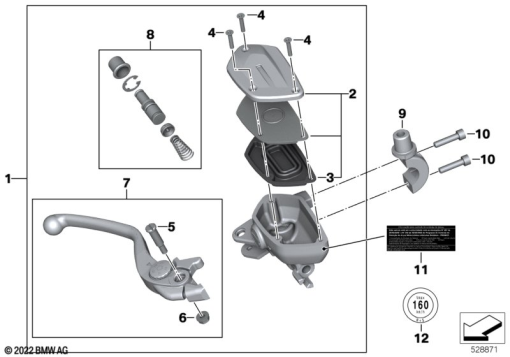

F900GS 22 (K81) CONTROL ASSEMBLY FITTING exploded view parts diagram

Parts List (10)

#Part NumberDescriptionQty
1
32 72 7 105 711
HANDBRAKE LEVER-
2
32 72 8 104 419
SET: SET OF CAPS, FLUID RESERVOIR, BRAKES-
3
32 72 8 558 856
RUBBER BOOT-
4
32 72 8 559 863
COUNTERSUNK SCREW - M4X20-
5
32 72 8 559 816
SCREW-
6
32 72 8 554 974
NUT - M6-
7
32 72 8 566 734
SET: HANDBRAKE LEVER-
9
32 72 8 393 011
PIPE CLAMP-
32 72 8 354 668
PIPE CLAMP RIGHTAlternative for position 9-
10
07 12 9 907 402
FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
