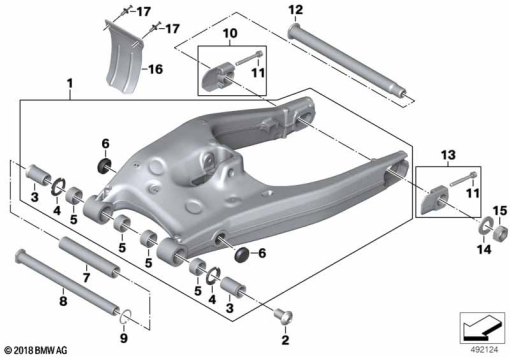

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33355A70125 | REAR WHEEL SWINGING ARM | 1 | |
| 2 | 33 35 8 389 087 | SCREW - M20X1,5X30 | 1 | |
| 3 | 33 35 8 389 083 | BUSHING - 24X30X51 | 1 | |
| 4 | 33 35 8 389 085 | STOP DISK | 1 | |
| 5 | 33 11 7 684 640 | NEEDLE SLEEVE | 1 | |
| 6 | 33 32 6 786 219 | PLUG | 1 | |
| 7 | 33 35 8 389 088 | SPACER BUSH | 1 | |
| 8 | 33 35 8 389 086 | SWINGING FORK PIVOT | 1 | |
| 9 | 07 11 9 909 492 | LOCK RING - 36,5X1,5-ZNNIV | 1 | |
| 10 | 33 35 8 565 008 | CHAIN TENSIONER, RIGHT | 1 | |
| 11 | 33 35 7 725 720 | ISA SCREW - M8X70X40-U0-8.8 | 1 | |
| 12 | 33 17 7 718 528 | AXLE SHAFT REAR | 1 | |
| 13 | 33 35 8 565 007 | CHAIN TENSIONER, LEFT | 1 | |
| 14 | 07 11 9 906 682 | WASHER | 1 | |
| 15 | 33 17 7 718 533 | NUT - M24X1,5 | 1 | |
| 16 | 33 54 8 359 968 | MUDGUARD, SPRING STRUT | 1 | |
| 17 | 51 11 1 908 077 | EXPANDING RIVET - D = 6MM | 1 |
