F900GS 22 (K81) | Rear Axle & Suspension

CHAIN GUARD

Diagram #33_2084 | 4 parts

100%

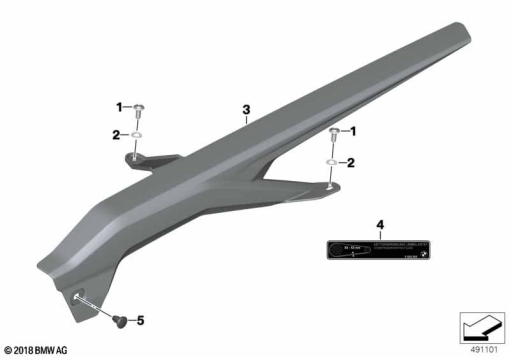

F900GS 22 (K81) CHAIN GUARD exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
61 31 8 547 664
BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK1
2
46 63 8 525 836
PLASTIC WASHER - M61
3
46 62 8 564 626
CHAIN GUARD1
5
51 47 1 916 670
EXPANDING RIVET1
