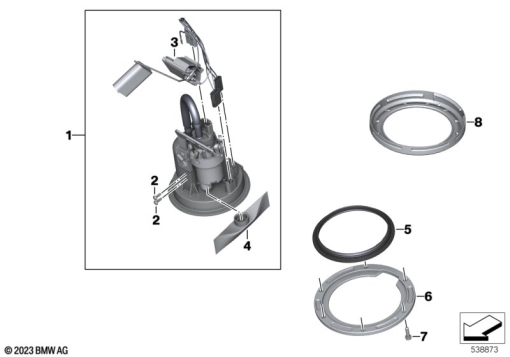

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 14 9 829 178 | FUEL PUMP ASSY | - | |
| 2 | 07 11 9 906 189 | SHEET METAL SCREW - ST4,2X13 | - | |
| 3 | 16 14 8 394 224 | SET: LEVER SENSOR | - | |
| 4 | 16 14 8 543 001 | SET: REPAIR KIT FOR FILTER SCREEN | - | |
| 5 | 16 11 7 922 182 | GASKET | - | |
| 8 | 16 11 6 760 285 | SCREW CAP | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
